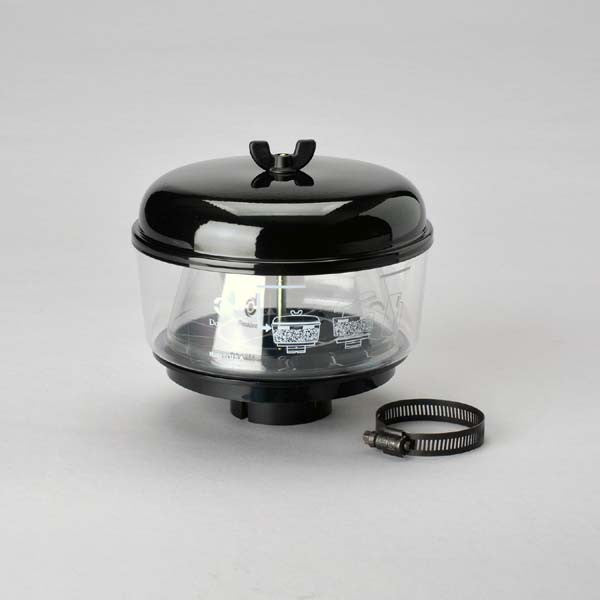

Donaldson Pre-Cleaner, Full View 2.25inch - H001250
Height 6.17 inch (156.7 mm)
Body Diameter Maximum 7.34 inch (186.5 mm)
Outlet ID 2.26 inch (57.3 mm)
Efficiency 75
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 131 cfm (3.7 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 2.99 inch H2O (76 mm H2O)
Filter Cross Reference:
AG CHEM EQUIPMENT-605274 ,702970 ,71745019 ,605274SUB ,702970SUB ,71745019SUB ; AGCO-70257382 ,2732763M91 ,2732763M91SUB ,70257382SUB ,W10A9617 ; BARLOWORLD FINANZAUTO-3292681M1 ; BELL-200047 ,200047SUB ; BEPCO GROUP LTD-1681 ; CASE-CASE IH-81823388 ,86620243 ,303729A1 ,365261R91 ,A24439 ; CHAMPION INDUSTRIES-114182 ; CLARK-552689 ,552689SUB ; CLARK J.L.-807842 ,M807842 ; DEUTZ-W10A9617 ; DONALDSON-H000235 ; FIAT-8562883 ,70624796 ,70624796SUB ; FORD-C0NN9A660A ; HAVAM-HD9342 ,HD9446 ; IVECO-8562883 ; JOHN DEERE-AR26416 ,AT170947 ; KOMATSU-365261R91 ,365261R91SUB ; LOESING-21845 ,21845 ; LULL-3080201 ; MODERN LTD-3555 ; NACCO MATERIALS-S62439 002 ; NEW HOLLAND-120211 ,513214 ,70624796 ,120211SUB ,513214SUB ,70624796SUB ,CONN9A660A ,NPN00843 ; NISSAN-UD TRUCKS-753950M1 ; OLSSONS I ELLOS AB-1681 ,81823388 ; SAMCOR PRETORIA-C0NN9A660A ; THERMO KING-115518SUB ,4666C49G02SUB ; THOMAS-6441SUB ; VOLVO-784646 ,VOE784646 ; WACKER NEUSON-2810213 ; WALGAHN-MOTORENTECHN-810164 ,810164 ,810224 ,810224 ; WEIDEMANN-5559001250 ; WHITE-W10A9617
