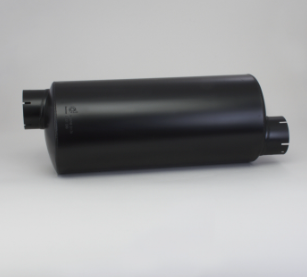

Donaldson Exhaust - M120748

Style  2

Flow Direction    Inlet-Outlet
Inlet Diameter    5.03 inch (127.64 mm)
Outlet Diameter    5.03 inch (127.64 mm)
Body Diameter Maximum    11.84 inch (300.74 mm)
Body Length    25.75 inch (654.1 mm)
Overall Length    34.00 inch (863.6 mm)
Rated Flow LR    1762 cfm (49.9 m³/min)
Rated Flow MR    2447 cfm (69.3 m³/min)
Rated Flow HR    2447 cfm (69.3 m³/min)
Back Pressure Low-Range    0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range    2.01 inch Hg (51 mm Hg)
Back Pressure High-Range    2.01 inch Hg (51 mm Hg)
Attenuation LR    12 dBA
Attenuation HR    18 dBA
Inlet Clock Position    6:00
Outlet Clock Position    12:00


Filter Cross Reference:
GROVE-5369670 ; MANITOWOC-5369670 ; NELSON-201576N
