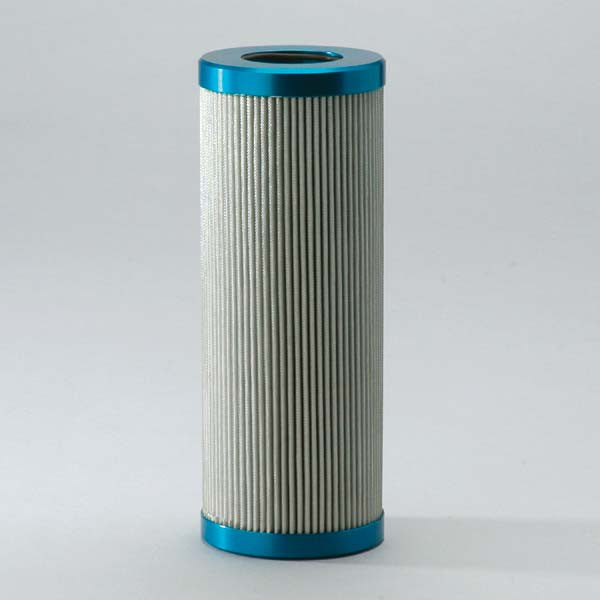

Donaldson Hp Hydraulic Cartridge - P566387 (P169424)

Seal Material Viton
Outer Diameter 3.13 inch (79.4 mm)
Inner Diameter 1.7 inch (43.2 mm)
Length 8.2 inch (208.3 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 3002 psi (207 bar)
Style Cartridge
Media Type Synthetic

Filter Cross Reference:AONALDSON-DT965185UM ; FAIREY ARLON-R951H0803A ; FLUID CONTROL SERVICES-FC2542 ; HYDAC-HYCON-2060807 ,11808D03BH ; LUBER FINER-LH95054 ,LH95054V ; PALL-HC9651FDP8H ,HC9651FDP8Z ,HC9651FKP8H ,HC9651FKP8Z ,HC9651FUP8H ,HC9651FUP8Z ; PARKER-928152Q ; SCHROEDER-SBF96518Z3B ,SBF96518Z3V ; TRIBOGUARD-965182UM ,965182UMV ; WESTERN FILTER-E2054B2H03
