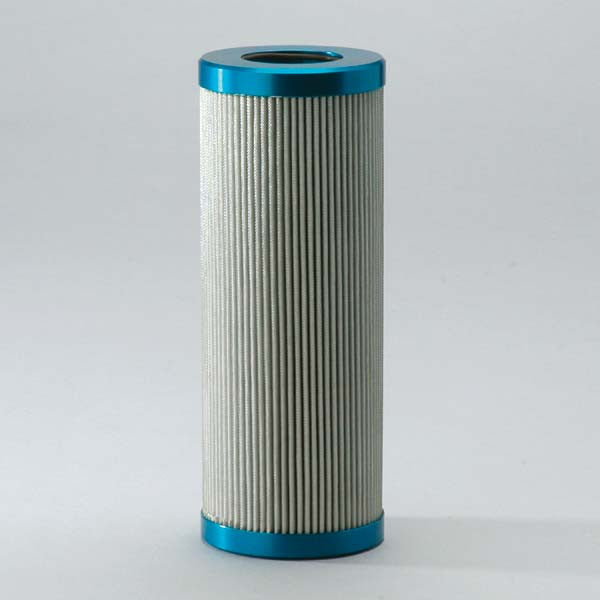

Donaldson Hp Hydraulic Cartridge - P566388 (P169426)

Seal Material Viton
Outer Diameter 3.13 inch (79.4 mm)
Inner Diameter 1.7 inch (43.2 mm)
Length 8.2 inch (208.3 mm)
Efficiency Beta 1000 9 micron
Collapse Burst 3002 psi (207 bar)
Style Cartridge
Media Type Synthetic

Filter Cross Reference:AONALDSON-DT9651814UM ; FAIREY ARLON-R951H0815A ; HYDAC-HYCON-2060810 ,11808D17BH ,H96518020BH ; LUBER FINER-LH95055 ,LH95055V ; PALL-HC9651FDT8H ,HC9651FDT8Z ,HC9651FUT8H ,HC9651FUT8Z ; PARKER-928150Q ; SCHROEDER-SBF96518Z10B ,SBF96518Z10V ; TRIBOGUARD-9651815UM ,9651815UMV ; WESTERN FILTER-E2054B2H10
