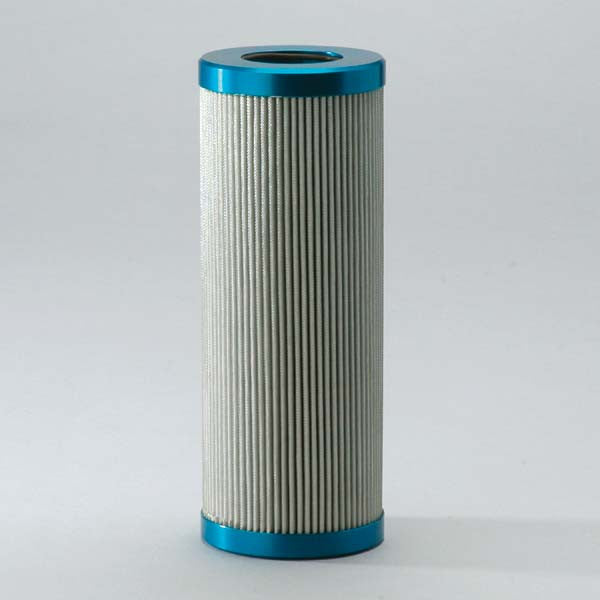

Donaldson Hp Hydraulic Cartridge - P566389 (P169425)

Seal Material Viton
Outer Diameter 3.13 inch (79.4 mm)
Inner Diameter 1.7 inch (43.2 mm)
Length 16.83 inch (427.5 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 3002 psi (207 bar)
Style Cartridge
Media Type Synthetic

Filter Cross Reference:AONALDSON-DT9651165UM ; FAIREY ARLON-R951H1603A ; HYDAC-HYCON-2060815 ,11816D03BH ; LUBER FINER-LH95056 ,LH95056V ; PALL-HC9651FDP16H ,HC9651FDP16Z ,HC9651FUP16H ,HC9651FUP16Z ; PARKER-928156Q ; SCHROEDER-SBF965116Z3B ,SBF965116Z3V ; TRIBOGUARD-9651162UM ,9651162UMV ; WESTERN FILTER-E2054B5H03
