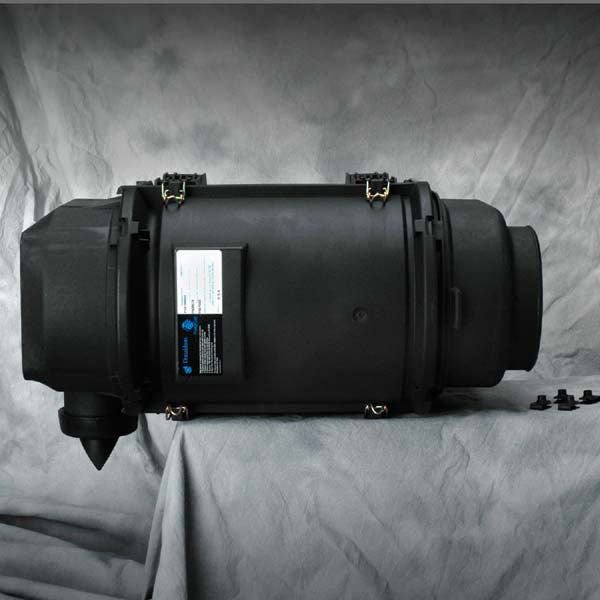

Donaldson Air Cleaner, PSD- D100068 (D100397)

Family PSD
Media Brand PowerCore®

Outlet Diameter 5.98 inch (152 mm)
Body Length 11.77 inch (298.9 mm)
Overall Length 20.83 inch (529 mm)
Rated Flow LR 540 cfm (15.3 m³/min)
Rated Flow MR 629 cfm (17.8 m³/min)
Rated Flow HR 706 cfm (20 m³/min)
Restriction LR 6.00 inch H2O (152.4 mm H2O)
Restriction MR 8.00 inch H2O (203.2 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)


Filter Cross Reference:
BADGER-1000148 ; CASE-CASE IH-N101915
