Donaldson  - H001249

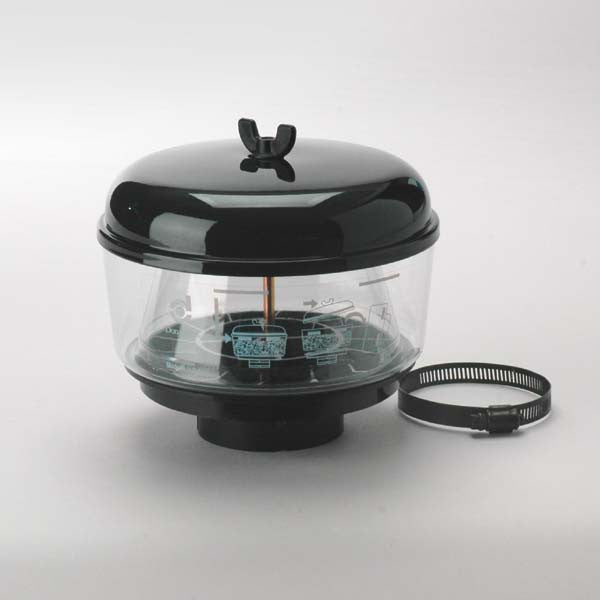

Donaldson Pre-Cleaner, Full View 3inch - H001249

$44.76

Height 6.17 inch (156.7 mm)
Body Diameter Maximum 7.34 inch (186.5 mm)
Outlet ID 3.02 inch (76.71 mm)


Efficiency 75 Percent
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 170 cfm (4.8 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 2.99 inch H2O (76 mm H2O)


Filter Cross Reference:
ACMAT-F145954 ,PROLTV025 ; AG CHEM EQUIPMENT-850985 ,850985SUB ; AGCO-4318399 ,4345068 ,70022766 ,71174593 ,71306480 ,700708221 ,105781AS ,1693129B1 ,1693129M1 ,1693129V1 ,4318399SUB ,4345068SUB ,70022766SUB ,700708221SUB ,71174593SUB ,71306480SUB ; AMERICAN MOTORS CORPORATION-90189 ,0003702P0 ,1693129B1 ; ARDCO-ENE0196 ; ARGO-24PBH000237 ; ARROW-MASTER-4001904 ,4001904SUB ; ATHEY-6187091 ,P83160 ; ATLANTIS DIESEL ENGINES-D143AE36414 ; ATLAS WEYHAUSEN-1722641 ; AWD-09Y9431 ; B R LEE INDUSTRIES-34677 ; BELL-290321 ,290321SUB ; BENFRA-40149 ; BEPCO GROUP LTD-1683 ; BLOUNT-810854000 ; BOBCAT-6689694 ; CAMECO-61347433 ,61347433 ,0061347433J ,AT170950 ; CASE-CASE IH-5127309 ,47050838 ,85805649 ,700053329 ,920015937 ,193867A1 ,1938867A1 ,321190R91 ,A024391 ,A24391&193867A1 ; CATERPILLAR-2313761 ,9376100020 ,9Y9431 ; CHAMPION ROAD-10350197 ; CHARDONNET-7400124900 ; CLAAS-944301509 ; CLARK-736001 ,2803066 ,3790858 ,6736001 ,6736001 ,63790858 ,63790858 ,1650897H50 ,2803066SUB ,736001SUB ; CLARK J.L.-3790858 ,01550557N ,M01550557N ,M01550575N ; DAEWOO-D131270 ; DEUTZ-1071335 ,3749421 ,4345068 ,06504572K7 ,105781AS ,231545KZ100843 ; DIAMOND-2506407 ; DONALDSON-H000237 ,H000237SUB ,P020654 ; DRESSER-321190R91 ; DRONNINGBORG-46428300 ; DYNAPAC-521680 ,521680 ; EAGLE PICHER-63342 ,9Y9431 ; ECL-132851 ; ELGIN-1011570 ,6187091 ; ENTWISTLE COMPANY-9310C3046001 ; EUCLID-795619 ; EXMAN-90189 ,0003702P0 ,1693129B1 ; FAUN-746212 ,746212 ; FENDT-1693129B1 ; FIAT-1849398 ,5127309 ,79049788 ,700053329 ,920015937 ; FINN FILTER-22212 ; FLEETGUARD-AP3000 ; FREIGHTLINER-DNH001249 ; FURUKAWA-321190R91 ; G-TEK-3216978100 ; GEHL-L67155 ; GENERAC-9Y9431 ; GROVE-1001000 ; HANOMAG TRAKTOREN-2871988M91 ; HAVAM-HD9346 ,HD9440 ; HAWKER SIDDELEY-38207900 ; HITACHI-79049788 ; HYDRA MAC-7100012SUB ; HYSTER-291974 ,291974 ,984206 ,1300453 ,580008965 ,291974SUB ,S00757953 ; INGERSOLL RAND-10350197 ,57431892 ,59450247 ,59988097 ,10350197SUB ,59450247SUB ,59988097SUB ; INTRUPA-HY1386 ; IVECO-944301509 ; JCB-32208100 ,JLH0094 ; JLG-1001062773 ; JOHN DEERE-AF3580R ,AL37357 ,AT170950 ,CHAM26938 ,EPAF3580R ; KALMAR-9223310002 ; KHD-4345068 ,06504572K7 ; KOBELCO-193867A1 ; KOMATSU-52137 ,848101096 ,1040151610 ,6001828110 ,3EB01F2160 ; KYSOR-460C012 ; LBX COMPANY LLC-BRH0253 ; LINK BELT-BRH0253 ; LISTER PETTER-38207900 ,57255620 ,38207900SUB ,57255620SUB ; LOESING-21647 ,21647 ; MACDON-30003 ; MANITOU-U23410F203071 ; MANITOWOC-1001000 ; MARINE TRAVELIFT INC.-1001000 ; MASSEY FERGUSON-1693129B1 ,1693129M1 ,3126592M1 ,6002792M1 ; MCCORMICK-321190R91 ,A024391 ; MERKOTEK-1693129M1M ; MILLER ELECTRIC-25097 ,25097SUB ; MINNPAR-1022766 ,1022766SUB ; MOBILE PRODUCTS INCORPORATED-70383 ; MODERN LTD-3557 ; MORBARK-29321291 ; NACCO MATERIALS-291974 ,580008965 ,0291974SUB ,504137100SUB ,H000237 ,H000237SUB ,PBH000237 ,PBH000237SUB ; NEW HOLLAND-5127309 ,700053329 ,920015937 ,H001249 ; OLSSONS I ELLOS AB-1693129 ; ORENSTEIN & KOPPEL-91790 ,1427471 ; P & H-10467728 ,10467728SUB ,1046Z728 ,1046Z728SUB ; PERKINS-21820072 ,21820072&PI02682 ,PI02682 ; POWER BOSS-303887SUB ; PRINCETON DELIVERY SYSTEMS-620146 ; RENAULT VI-944301509 ,944301509 ; SAMCOR PRETORIA-97NU9A660AA ; SAME-4345068 ,242391000 ,24239100001 ; SAMSUNG-3245671 ,3245671SUB ; SCHAEFF-63342 ,H001249764140 ; SELLICK EQPT LTD-192021 ; SHUTTLELIFT INC-1001000 ; SIGMA AIR CONDITIONING-460C012 ; SOLMEC SPA-2102106015 ; STILL-516942 ; SULLAIR-30438 ,30438 ; SYSTEMS MATERIAL HANDLING-CT8H2021 ; TAYLOR-PBH001249 ,VTPBH001249 ; TENNANT-75666 ; TEREX-32301 ,32301 ,1427471 ; THOMAS-17409SUB ,25615SUB ; TOYOTA-17780U210071 ,23410F203071 ,U23410F203071 ; TYLER POWER PRODUCTS-46884SUB ; TYMCO-500595 ,500595SUB ; UNITED CENTRAL INDUSTRIAL SUPP-910027 ,917475 ; VACTOR MANUFACTURING-38000A ; VAPORMATIC-CPD4108 ,VPD4108 ; VERMEER-97408001 ,103067001 ,103067003 ,106067001 ,974080011 ,1030670011 ; VM MOTORI-R4113010 ; VMC-AP1249 ; VME-795619 ,VOE795619 ; VOLVO-795619 ,VOE795619 ; WALDON-70383 ,70383 ; WALGAHN-MOTORENTECHN-810166 ,810166 ,810223 ,810223 ,810403 ,810403 ; WAUKESHA-50930B ,50930BSUB ; WEIDEMANN-5559001249 ; WHITE-W105781AS ; YALE-504137100 ,504137100SUB
