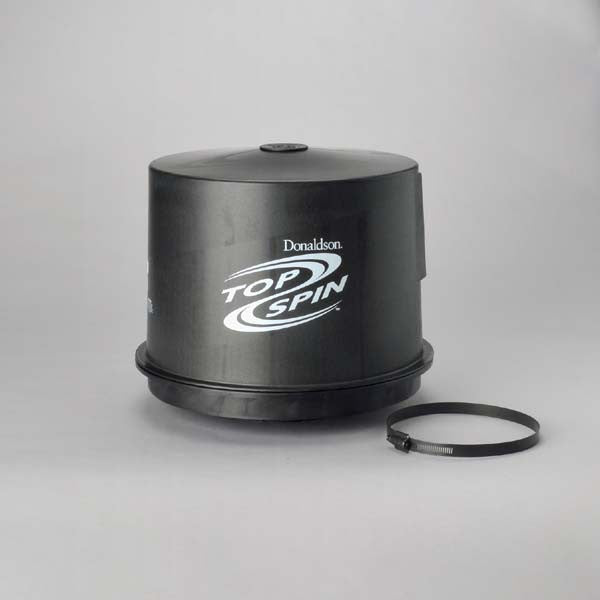

Donaldson Pre-Cleaner Topspin - H002439
Height 13.44 inch (341.38 mm)
Body Diameter Maximum 15.62 inch (396.75 mm)
Outlet ID 7.03 inch (178.56 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 798 cfm (22.6 m³/min)
Rated Flow HR 1501 cfm (42.5 m³/min)
Restriction LR 2.01 inch H2O (51 mm H2O)
Restriction HR 8.74 inch H2O (222 mm H2O)
Brand TopSpin™ HD
Filter Cross Reference:
ADVANCE MIXER-19482 ; BARKO HYDRAULICS-53506510 ; CARQUEST-89177 ; CUMMINS-CDD001069 ; FLEETGUARD-AP8405 ,AP8406 ; FREIGHTLINER-DNH002439 ; HAY & FORAGE-71434276 ; HURRICANE COMPRESSOR-12469239 ; KALMAR-9214240102 ; NACCO MATERIALS-1586313 ; NAPA-4177 ; NEUSON-975406 ,1000181529 ; OSHKOSH-DNH002439 ; SANDVIK-507501 ; SPARTAN MOTORS-1231HH2001 ,PTH002439 ; TRACKMOBILE-1083466 ; VMC-AP2439 ; WIX-24177
Body Diameter Maximum 15.62 inch (396.75 mm)
Outlet ID 7.03 inch (178.56 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 798 cfm (22.6 m³/min)
Rated Flow HR 1501 cfm (42.5 m³/min)
Restriction LR 2.01 inch H2O (51 mm H2O)
Restriction HR 8.74 inch H2O (222 mm H2O)
Brand TopSpin™ HD
Filter Cross Reference:
ADVANCE MIXER-19482 ; BARKO HYDRAULICS-53506510 ; CARQUEST-89177 ; CUMMINS-CDD001069 ; FLEETGUARD-AP8405 ,AP8406 ; FREIGHTLINER-DNH002439 ; HAY & FORAGE-71434276 ; HURRICANE COMPRESSOR-12469239 ; KALMAR-9214240102 ; NACCO MATERIALS-1586313 ; NAPA-4177 ; NEUSON-975406 ,1000181529 ; OSHKOSH-DNH002439 ; SANDVIK-507501 ; SPARTAN MOTORS-1231HH2001 ,PTH002439 ; TRACKMOBILE-1083466 ; VMC-AP2439 ; WIX-24177
