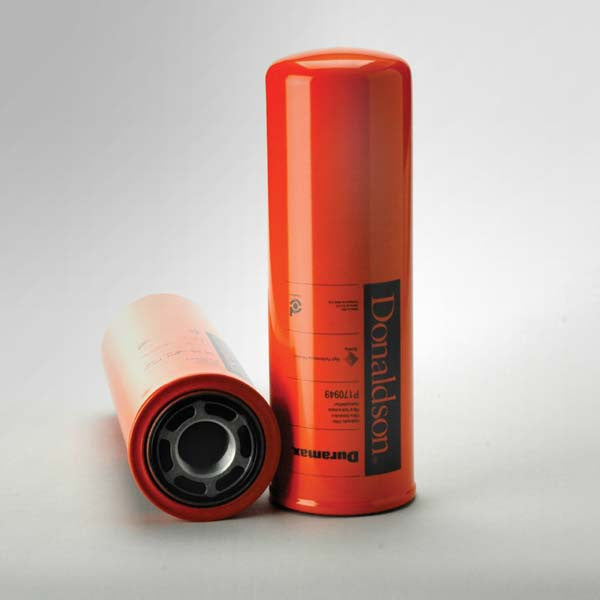

Donaldson Hydraulic Filter Spin-on Duramax- P170949
Outer Diameter 4.70 inch (119.4 mm)
Thread Size 1 3/4-12 UN
Length 14.24 inch (361.6 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 3.11 inch (79 mm)
Efficiency Beta 1000 11 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
Primary Application CASE/CASE IH 1971728C1
Filter Cross Reference:
AG CHEM EQUIPMENT-718573 ; AGCO-534039D1 ; AMERICAN PARTS-92729 ; BALDWIN-BT742 ,BT8870MPG ; BIG A-92729 ; BUHLER VERSATILE-500386 ; CAMECO-RE174130 ; CARQUEST-85729 ; CASE-CASE IH-191728C1 ,1971728C1 ,277311A1 ; CATERPILLAR-1526902 ,3I1946 ; CHAMPION LABORATORIES-LFH8417 ; FLEETGUARD-HF6590 ,HF6684 ; FLEETRITE-HFR86590 ,HFR86684 ; FRAM-P8463 ; FUNK-RE174130 ; GREYFRIARS-HS7694 ; HASTINGS-HF936 ; HIFI FILTER - JURA FILTRATION-SH56640 ; JOHN DEERE-RE174130 ,RE51797 ,RE51797A ; LOESING-20344 ,20344 ; LUBER FINER-LFH8417 ,LFP8250 ; MANN & HUMMEL-WH1279 ; MCCORMICK-1971728C1 ; NAPA-1729 ; NAVISTAR-191728C1 ,1971728C1 ; NEW HOLLAND-87413809 ; PARKER-944041Q ; PUROLATOR-H65027 ; REPLACED BY-P573352 ;SF-FILTER-SPH12501 ; SUNSOURCE-1526902 ; VAPORMATIC-CPK1531 ,VPK1531 ; VERSATILE-86040230 ; VMC-HF170949 ; WALGAHN-MOTORENTECHN-811881 ,811881 ; WIX-729 ,51729 ,551729 ,9092677 ; WOODGATE-WGH6590
Thread Size 1 3/4-12 UN
Length 14.24 inch (361.6 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 3.11 inch (79 mm)
Efficiency Beta 1000 11 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
Primary Application CASE/CASE IH 1971728C1
Filter Cross Reference:
AG CHEM EQUIPMENT-718573 ; AGCO-534039D1 ; AMERICAN PARTS-92729 ; BALDWIN-BT742 ,BT8870MPG ; BIG A-92729 ; BUHLER VERSATILE-500386 ; CAMECO-RE174130 ; CARQUEST-85729 ; CASE-CASE IH-191728C1 ,1971728C1 ,277311A1 ; CATERPILLAR-1526902 ,3I1946 ; CHAMPION LABORATORIES-LFH8417 ; FLEETGUARD-HF6590 ,HF6684 ; FLEETRITE-HFR86590 ,HFR86684 ; FRAM-P8463 ; FUNK-RE174130 ; GREYFRIARS-HS7694 ; HASTINGS-HF936 ; HIFI FILTER - JURA FILTRATION-SH56640 ; JOHN DEERE-RE174130 ,RE51797 ,RE51797A ; LOESING-20344 ,20344 ; LUBER FINER-LFH8417 ,LFP8250 ; MANN & HUMMEL-WH1279 ; MCCORMICK-1971728C1 ; NAPA-1729 ; NAVISTAR-191728C1 ,1971728C1 ; NEW HOLLAND-87413809 ; PARKER-944041Q ; PUROLATOR-H65027 ; REPLACED BY-P573352 ;SF-FILTER-SPH12501 ; SUNSOURCE-1526902 ; VAPORMATIC-CPK1531 ,VPK1531 ; VERSATILE-86040230 ; VMC-HF170949 ; WALGAHN-MOTORENTECHN-811881 ,811881 ; WIX-729 ,51729 ,551729 ,9092677 ; WOODGATE-WGH6590
