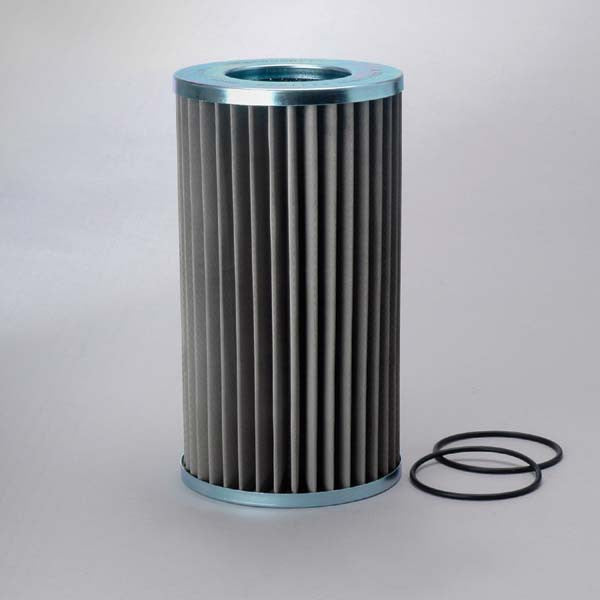

Donaldson Hydraulic Cartridge - P171677 (MF0577135)

Main Filter Brand

Part Type:    Hydraulic
Element Type:    Return Line
Product Media:    Wire Mesh
Height:    9.840
OD Top:    5.120
ID Top:    2.990
OD Bottom:    5.120
ID Bottom:    2.990
Collapse Pressure (PSI):    145
Operating Temp Min (F):    -13
Operating Temp Max (F):    248
Filter Area (SQ IN):    580
Flow Direction:    Outside-In
Gasket Material:    Viton
Fluid Type:    HH / HL / HM / HV
Micron 1:    60
Weight (LBS):    2.9


Filter Cross Reference:
CARQUEST-R40C60TV ; F.B.O.-C6306 ; FILTREC-R261T60 ,R261T60V ; HY PRO-HPCU360WB ; ILVA-6738780 ; MAIN FILTER-R261T60 ,R261T60V ; MODINA-RH150MS1 ; MP FILTRI-CU630M60 ,CU630M60N ; NAPA-R40C60TV ;SF-FILTER-HY18177 ; UFI-ERD51ME ; WALGAHN-MOTORENTECHN-812068 ,812068 ; WIX-R40C60TV
