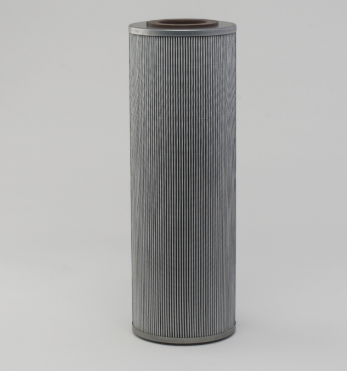

Donaldson Hydraulic Cartridge - P566705 (P176202)

NEW DONALDSON PART NUMBER - P566705

Style    Cartridge
Brand    DT High-Performance
Media Type    Synthetic

Seal Material    Viton
Outer Diameter    6.02 inch (152.8 mm)
Inner Diameter    2.87 inch (72.9 mm)
Length    17.99 inch (457 mm)
Overall Length    17.99 inch (457 mm)
Efficiency Beta 1000    5 micron
Collapse Burst    125 psi (8.6 bar)
Flow Direction    Outside-In


Filter Cross Reference:
COMMERCIAL FILTER-90535003 ; FILTREC-R320G03P ; HILCO-PH71801 ,PL71812 ; HY PRO-HP101318L183MB ; PALL-HC0101FKN18HY514 ,HC0101FKP18HY514 ; TRIBOGUARD-6X183UM
