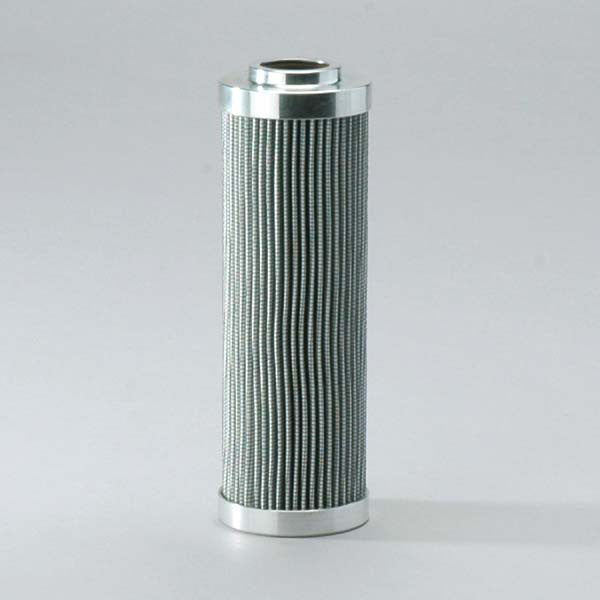

Donaldson Hp Hydraulic Cartridge - P566661

Seal Material Fluorocarbon
Outer Diameter 1.88 inch (47.75 mm)
Inner Diameter 0.87 inch (22.2 mm)
Overall Length 6.01 inch (152.7 mm)
Efficiency Beta 1000 25 micron
Collapse Burst 450 psi (31 bar)
Flow Direction Outside-In
Style Cartridge
Brand DT High-Performance
Media Type Synthetic

Filter Cross Reference:AONALDSON-DT0110D25UM ; FILTREC-DHD110G20B ,DHD110G20V ; HY PRO-HP06DNL725MB ,HP06DNL725MV ; HYDAC-HYCON-2055909 ,0110D020BN ,0110D020BN3HC ,0110D020BN4HC ,0110D020BNHC ; LUBER FINER-LH95316 ,LH95316V ; MAIN FILTER-DHD110G20B ,DHD110G20V ; PALL-HC2206FCT6H ,HC2206FCT6Z ,HC2206FDT6H ,HC2206FDT6Z ,HC2206FKT6H ,HC2206FKT6Z ,HC2206FUT6H ,HC2206FUT6Z ; PARKER-PR3088 ; SCHROEDER-SBF0110DZ25B ,SBF0110DZ25V ; TRIBOGUARD-110D020N ,110D020NV
