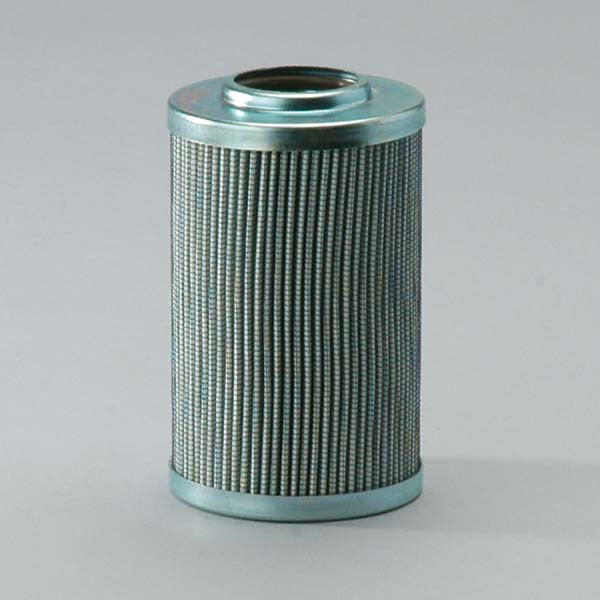

Donaldson Hp Hydraulic Cartridge - P566672

Donaldson Old Part # P170608

Seal Material Fluorocarbon
Outer Diameter 2.75 inch (69.9 mm)
Inner Diameter 1.34 inch (33.96 mm)
Overall Length 6.85 inch (174 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 450 psi (31 bar)
Flow Direction Outside-In
Style Cartridge
Brand DT High-Performance
Media Type Synthetic

Primary Application HYDAC/HYCON 0240D010BN3HC

Filter Cross Reference:BALDWIN-PT9490MPG ; DONALDSON-DT0240D14UM ; FAIREY ARLON-R240HBH10A ; FILTREC-DHD240G10B ,DHD240G10V ; FLEETGUARD-HF30222 ,HF6872 ; HY PRO-HP16DNL812MB ,HP16DNL812MV ; HYDAC-HYCON-1250491 ,2055756 ,0240D010BN ,0240D010BN3HC ,0240D010BN4HC ,0240D010BNHC ; LUBER FINER-LH95345 ,LH95345V ; MAHLE-PNHC35 ; MAIN FILTER-DHD240G10B ,DHD240G10V ; NAPA-7883 ; PALL-HC2216FCS6H ,HC2216FCS6Z ,HC2216FDS6H ,HC2216FDS6Z ,HC2216FKS6H ,HC2216FKS6Z ,HC2216FUS6H ,HC2216FUS6Z ; PARKER-PR3145 ; SANY-B222100000159 ; SCHROEDER-SBF0240DZ10B ,SBF0240DZ10V ; STAUFF-SE070G10B ; TRIBOGUARD-240D010N ,240D010NV ; VICKERS-V0242B2C10 ,V3RB2C10 ; WESTERN FILTER-E0242B2C10 ; WIX-57883
