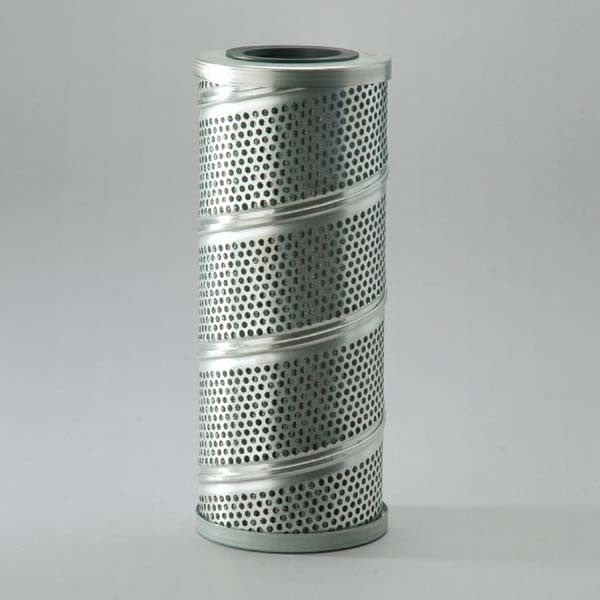

Donaldson Hp Hydraulic Cartridge - P567037

Flow Direction Reverse
Style Cartridge
Brand DT High-Performance
Media Type Synthetic

Seal Material Viton
Outer Diameter 3.78 inch (96.11 mm)
Inner Diameter 1.99 inch (50.62 mm)
Overall Length 18.64 inch (473.5 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 149 psi (10.3 bar)

Filter Cross Reference:

DONALDSON-DTRFIL225UM ; FAIREY ARLON-RF2AH1803A ; HY PRO-HP455L183MB ; PALL-HC2252FCP19H ,HC2252FCP19Z ,HC2252FDP19H ,HC2252FDP19Z ,HC2252FKP19H ,HC2252FKP19Z ,HC2252FUP19H ,HC2252FUP19Z ; PARKER-932692Q ,932695Q ; SCHROEDER-SBF100218Z3B ,SBF100218Z3V
