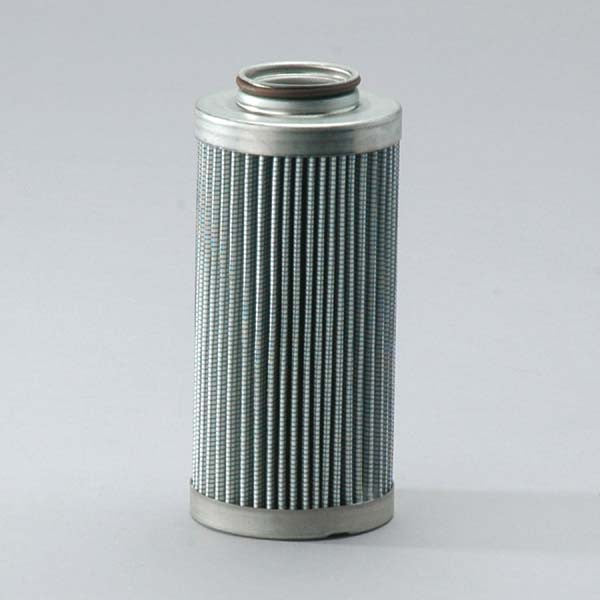

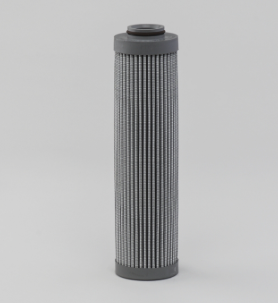

Donaldson HP Hydraulic Cartridge - P567048

ONLY SOLD IN PACKS OF 8

Style    Cartridge
Brand    DT High-Performance
Media Type    Synthetic

Seal Material    Viton
Outer Diameter    2.44 inch (61.98 mm)
Inner Diameter    1.02 inch (25.91 mm)
Length    9.25 inch (234.95 mm)
Outlet Diameter    1.02 inch (25.91 mm)
Overall Length    9.63 inch (244.6 mm)
Efficiency Beta 1000    23 micron
Collapse Burst    149 psi (10.3 bar)
Flow Direction    Outside-In

Filter Cross Reference:

DONALDSON-DT25P225UM ; FILTREC-D721G25AV ; HEIL-757051 ; HY PRO-HP170L1025MB ,HP170L1025MV ; MAIN FILTER-D721G25AV ; MP FILTRI-MP3828 ; PALL-HC2256FCT10H ,HC2256FKT10H ; PARKER-925834 ,925835 ,933136Q ,GO1318 ; SCHROEDER-SBF1050Z25V
